Modify touch screen buttons (EN / FR / ES)


Post new topic   Reply to topic    SofToGo Products Forum Index -> Programming WireLess Studio
View previous topic :: View next topic
Author Message
MesQuestions



Joined: 31 Oct 2007
Posts: 176
PostPosted: Thu Jun 04, 2009 2:54 pm    Post subject: Modify touch screen buttons (EN / FR / ES) Reply with quote
EN
I wish to change the RFButtons that appears in the touche screen.
By default in a input they are [OK] [ESC] / [F1] [F2].

FR
Je veux changer les RFButtons qui apparaissent dans l'écran tactile.
Par défaut dans un champ de saisie ils sont [OK] [ESC] / [F1] [F2].

ES
Quiero cambiar los RFButtons qui aparecen en la pantalla tactil.
Por defecto en un campo de ingreso de datos son [OK] [ESC] / [F1] [F2].
Back to top
View user's profile Send private message
cesarz
Site Admin


Joined: 04 Apr 2007
Posts: 294
Location: Buenos Aires, Argentina
PostPosted: Thu Jun 04, 2009 3:27 pm    Post subject: Reply with quote
There is an object to manage touch screen buttons (see WSDG):
http://www.sof2go.net/man/wst/en/wsdg/RFBUTTON.htm
There is a VB sample applicaiton that manage buttons
C:\Program Files\WireLessStudio\Samples\Button

It is very easy.
Code:
    '-------------------------------------------
    ' 3.1) create the button pad
    ' 3 Columns, 2 rows (top to 6 buttons in the pad ), 1 pixel border
    wsRfButton.PadCreate 3, 2, 1
    wsRfButton.AddButton 0, 0, "013", "ENTER", WBTN_DBLH
    wsRfButton.AddButton 1, 0, "027", "CLR", WBTN_DBLH
    wsRfButton.AddButton 2, 0, "_UP", "^", 0
    wsRfButton.AddButton 2, 1, "_DN", "V", 0
    wsRfButton.PadStore "MyMen"

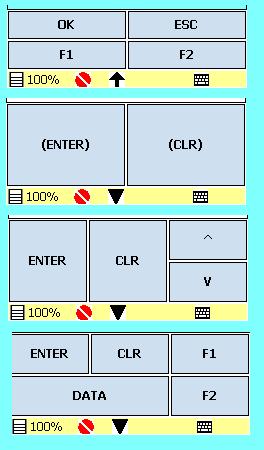

Some examples from RfButton demo.



If You want to do that without modify the program (not recommended procedure), see this post:
http://foro.sof2go.com/viewtopic.php?t=237
_________________
CesarZ-SofToGo.
